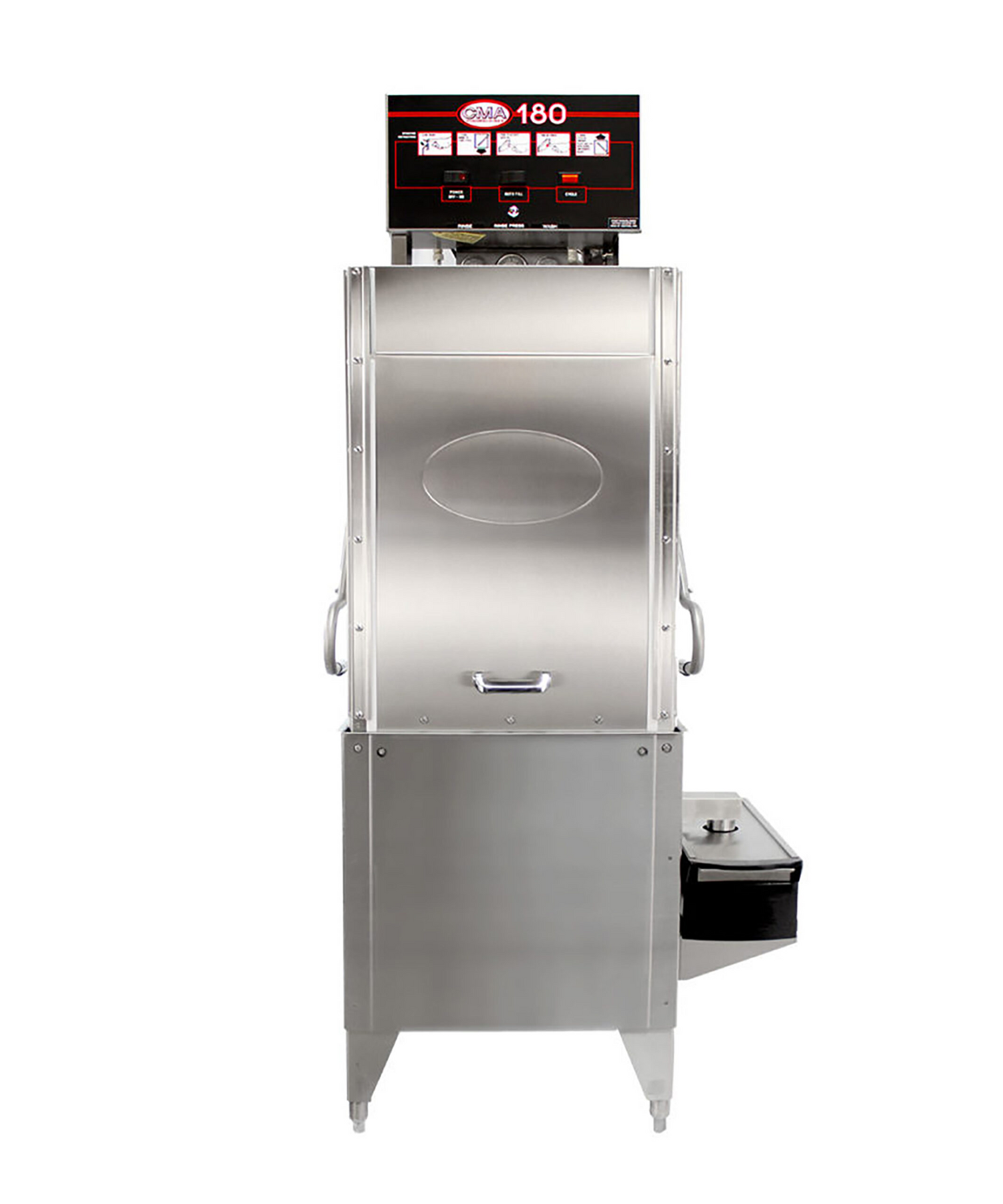

180 T S Tall Straight High Temp 220V/60Hz/1P No Booster

High temperature, straight-through design with its own built-in booster heater, producing 60 racks/hour . Features an external scrap trap accumulator with stainless scrap drawer, electrical wash tank heater and auto fill. 27" maximum clearance for dishes. The Safe-T-Temp feature assures a 180 degree final rinse. Safe-T-Temp locks the machine in the wash cycle until the booster heater thermostat has been satisfied. This model can be converted to a corner application.


Features:

- 60 racks / 240 covers per hour.
- Economical to operate. Uses only .82 gallons of water per cycle.
- Split door design provides a sheet pan door clearance of 27 inches, reduces overall (open-door) height of machine to 93-1/2". A beneficial feature for kitchens with low ceilings.
- Automatic soil purging system. Filters wash water and traps plate debris into an external tray. Tray can be easily removed.
- All stainless steel construction offers durable performance and years of trouble free operation.
- Built-in chemical resistant industrial 7kW (240V) heater is proven to be more durable than commercial style heaters.
- Unique spray arm system features upper and lower stainless steel wash arms with reinforced end caps.
- Auto start/stop makes operation safe and easy.
- Field convertible for a wide range of applications.
- Safety Temp feature assures 180 degrees F sanitizing rinse every cycle.
- Single point electrical connection.
- Automatic fill.
- Interchangeable upper and lower spray arms.
- Built in Delime switch.
- Includes 2 racks.

Top mounted control box is water tight and includes a rack counter, extended wash/delimer switch and easy to read temperature gauges.

Unique pull-pin design allows wash arms to be easily removed for cleaning.

External scrap tray maintains clean wash water and prevents debris from clogging the drain.

Industrial wash tank and optional booster heaters are designed for years of trouble free service.

Dimensions:

Depth 25" (63.5Cm
Width (Outside Dimension) 25"-1/2" (65Cm)
Height 69"-70" (175-178Cm)
Standard Table Height 34" (86.3Cm)
Max Clearance For Dishes 27" (68.6Cm)
Drain Connection (Off Floor) 11-1/2"-12-1/2 (29-32Cm)

Summary Specifications: CMA Model 180 T S
The model CMA-180TS Split Door single tank, high temperature dishwasher is designed for years of trouble free service, producing sparkling results while conserving energy, water and chemicals. This machine is available with an optional "built in" booster heater, assuring a continuous supply of 180 degrees F hot water, and can accommodate dishes and utensils up to 27" high. Unique soil purging system filters wash water and plate debris into an external tray. The CMA-180TS is NSF, UL, CUL approved. Constructed entirely of stainless steel.

Available Models:
- CMA-180TS Tall Straight Split Door
- CMA-180TC Tall Corner Split Door
- CMA-180TSB Tall Straight Split Door with Booster
- CMA-180TCB Tall Corner Split Door with Booster

• Model: CMA 01633.57
