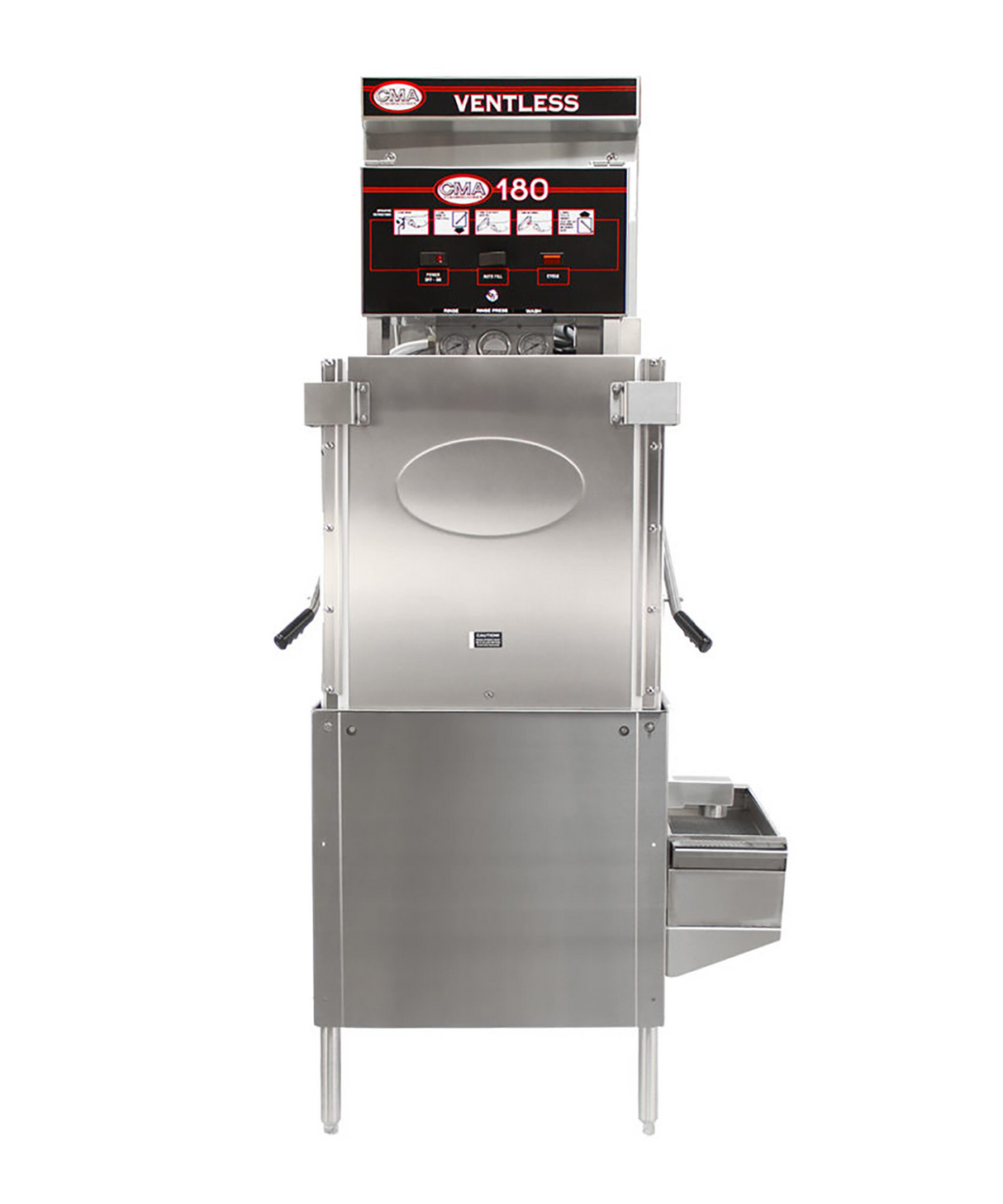

180-VL High Temp Ventless 220V/60Hz/3P w/Booster

The CMA Model 180-VL comes with a Safe-T-Temp feature that assures a 180 degree final rinse and locks the machine into the wash cycle until the booster heater thermostat has been satisfied. The Ventless process eliminates the installation cost of a hood/fan, annual operational cost of the hood/fan, and hood ventilation system cost. Water entering the booster heater has been pre-heated, reducing the energy cost to bring booster temperature to required 120 degrees, potentially saving THOUSANDS of $ in operation costs. The CMA-180-Ventless is provided with "Door Safety Interlock", to prevent operator from interrupting the ventless process that removes vapor from the machine. The 180-VL features a 17-1/2" dish clearance.

Features:

- Replaces need for independent vent hood.
- Final Rinse Valve receives cold water (41-65 degrees F) that is processed through a "Heat Recovery System" providing nearly cost-free heating capabilities for water supplied to the Booster Heater, which reduces the heat recovery time for the Booster Heater.
- Heat recovery system captures water vapor from the wash & rinse cycle, and condenses it to heat the incoming cold water & evacuate the steam from the wash chamber.
- Door-actuated start.
- Safe-T-Temp feature assures 180 degrees F sanitizing rinse every cycle.
- 12kW electrical booster heater.
- Booster-safety thermostat.
- 6kW wash tank heater.
- Low max. 0.89 US gallons of water usage per rack.
- Minimum 90-second cycle. (60 second wash/rinse & 30 second steam evacuation)
- 40 racks per hour (based on 90-second cycle).
- Fully automatic cycle for easy operation.
- Water level safety control.
- Maximum clearance for dishes is 17-1/2".
- All Stainless Steel construction.
- Wash tank screens, which filter recirculating wash water, prevent soil from entering spray arms.
- 3-door feature for straight or corner applications.
- Automatic heat exchange condenser wash-down feature.
- Rinse PRV supplied (Pressure Regulating Valve).
- Field convertible from three phase to single phase.

The "Ventless" option is a Heat Recovery Condensation Removal System.

Captures and distributes normally exhausted heat from the wash/rinse tank, using this FREE energy to pre-heat cold water prior to feeding the booster heater. Water entering the booster heater has been pre-heated, reducing the energy cost to bring booster temperature to required 180 degrees, potentially saving THOUSANDS of $dollars$ in operating costs.

Dimensions:

Depth 29" (76.7Cm)
Width (Outside Dimension) 25 -1/2" (65Cm)
Total Height 85-5/16"-86-5/16" (216-217Cm)
Standard Table Height 34" (86.3Cm)
Minimum Fan Clearance 6" (15.2Cm)
Max Clearance For Dishes 17-1/2" (44Cm)
Drain Connection (Off Floor) 11-1/2"-12-1/2" (29-32Cm)

Summary Specifications: CMA Model 180-VL
The model CMA-180-VL single tank, high temperature dishwasher is designed for years of trouble free service, producing sparkling results while conserving energy, water and chemicals. This machine is supplied with a built-in 12 kW booster heater required for "Ventless" feature to function. The CMA-180-VL comes standard with the 3-door feature for straight or corner applications. Unique soil purging system filters wash water and plate debris into an external tray. The CMA-180-VL is NSF, UL, and CUL approved. Constructed entirely of stainless steel.

• Model: CMA 01633.00
