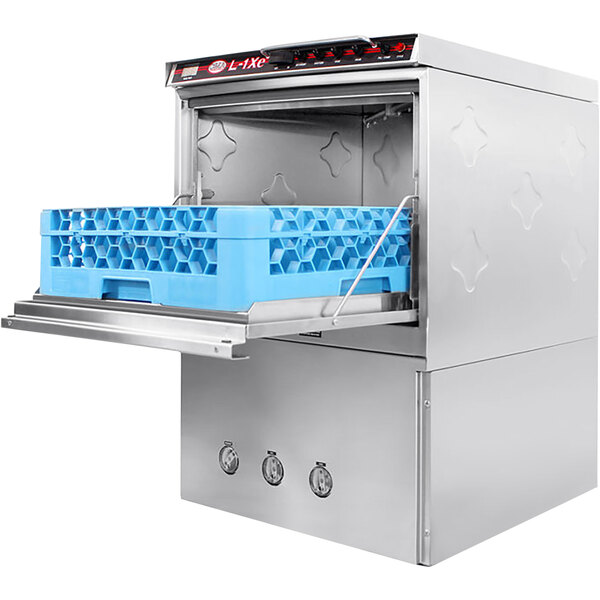

CMA Dishmachines L-1Xe Undercounter Low Temperature Energy Efficient Dishwasher - 115V

This CMA Dishmachines L-1Xe undercounter low temperature energy efficient dishwasher is perfect for both glassware and dishware and can accommodate products up to 12 1/4" high. This unit can clean up to 40 standard 20" x 20" dish racks. The dishwasher only uses 1.19 gallons of water per cycle, making it economical to operate.

For maximum durability, this unit is made with an all stainless steel construction, including the unique spray arm system with upper and lower wash arms. Maintenance is made easy with the convenient sliding drawer design for unobstructed access to hardware within the device. A pumped drain enables flexible installation, and the unit does not require a floor drain.

This unit reduces chemical and soil carryover with the pump purging system. A built-in strainer prevents the water valve from clogging. It also features a built-in prime switch, instant start, and a safety switch in the door. Built-in chemical pumps and a deliming system assures proper chemical usage. It requires a 115V electrical connection.

Overall Dimensions:
Width: 24"
Depth: 23 1/2"
Height: 33 1/8" - 34 1/8"
Interior Chamber Clearance: 12 1/4"



CMA Dishmachines L-1Xe Specs



Quantity: 1/Each

Shipping Weight: 190 lb.

Width: 24 Inches

Depth: 23 1/2 Inches

Height: 33 1/8 - 34 1/8 Inches

Amps: 16 Amps

Phase: 1 Phase

Voltage: 115 Volts

Features: Built-In Drain Pump Chemical Pumps

High or Low Temp: Low Temp

Horsepower: 1 HP

Interior Clearance: 12 1/4 Inches

Minimum Water Inlet Temperature: 120 Degrees F

Number of Wash Cycles: 1 Cycle

Type: Undercounter Dishwashers

Racks Per Hour: 40

Wash Cycle Time: 90 Seconds

Wash Tank Capacity: 1.19 gal.

Water Inlet Size: 1/2 Inches

Water Temperature: 120 - 140 Degrees F

Water Usage: 1.19 Gallons Per Rack
